Defogging logic

To reduce the probability of fogging up the inside of the windshield, the air intake is controlled automatically according to certain conditions such as position. To cancel or return the defogging or
logic, perform the following steps. position. To cancel or return the defogging
logic, perform the following steps.

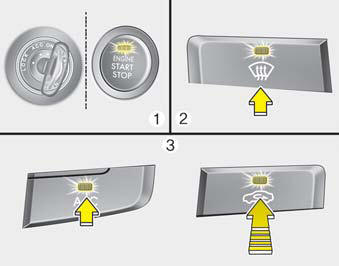

Manual climate control system


Manual climate control system

1. Turn the ignition switch to the ON position.

2. Turn the mode selection knob to the defrost position (3. Push the air intake control button at least 5 times within 3 seconds.).


3. Push the air intake control button at least 5 times within 3 seconds.

The indicator light in the air intake control button will blink 3 times with 0.5 second of interval. It indicates that the defogging logic is canceled or returned to the programmed status.

If the battery has been discharged or disconnected, the system resets to the programmed defogging logic.

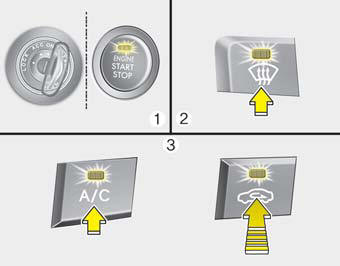

Automatic climate control system


Automatic climate control system

1. Turn the ignition switch to the ON position.

2. Select the defrost position pressing defrost button (3. While holding the air conditioning button (A/C) pressed, press the air intake).


3. While holding the air conditioning button (A/C) pressed, press the air intake control button at least 5 times within 3 seconds.

The indicator on the air intake control button blinks 3 times with 0.5 second of interval. It indicates that the defogging logic is canceled or returned to the programmed status.

If the battery has been discharged or disconnected, the system resets to the programmed defogging logic.
