Changing the Climate Control Air Filter

The climate control air filter is located in front of the evaporator unit behind the glove box.

It helps to decrease the amount of pollutants entering the car.

1. Open the glove box and remove the adjusting pins on both sides of the glove


1. Open the glove box and remove the adjusting pins on both sides of the glove box.

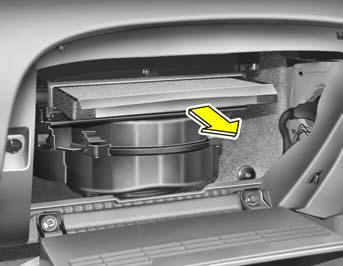

2. Pull out the climate control air filter with the hooks on both sides pressed.


2. Pull out the climate control air filter with the hooks on both sides pressed.

CAUTION:

Be careful not to press the hooks in the opposite direction.

3. Take out the climate control air filter and replace it with a new one.


3. Take out the climate control air filter and replace it with a new one.

4. Installation is the reverse order of disassembly.
