Heating and cooling control

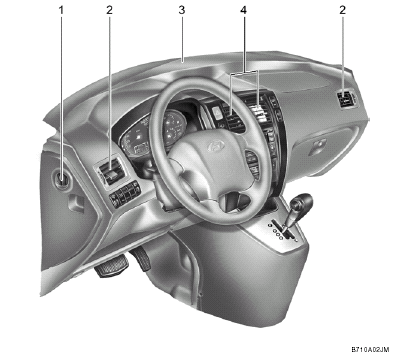

1. Side Defroster Nozzle
1. Side Defroster Nozzle 2. Side Ventilators
3. Windshield Defroster Nozzles 4. Center Ventilators

CENTER VENTILATOR

The center ventilators are located in the middle of the dashboard. To change the direction of the air flow, move the knob in the center of the vent up-and-down and side-to-side. The vents are opened when the vent knob is moved to "position. The vents are closed when the vent"
position. The vents are closed when the vent knob is moved to "clear". Keep these vents
clear
of any obstructions.

SIDE VENTILATOR

The side ventilators are located on each side of the dash board. To change the direction of the air flow, move the knob in the center of the vent up-and-down and side-to-side. The vents are closed when the vent knob is moved to "position. The vents are opened when the vent"
position. The vents are opened when the vent knob is moved to "clear". Keep these vents
clear
of any obstructions.
