Rear Combination Light

1. Open the trunk lid (4 Door) or tail gate (3 Door).

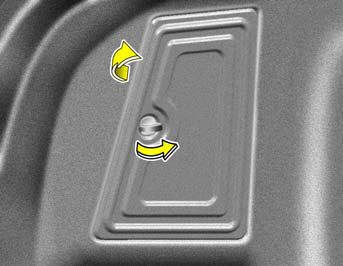

2. Remove the cover on the inside of luggage trim.


2. Remove the cover on the inside of luggage trim.

3. Remove the nuts of the rear combination light with a spanner.


3. Remove the nuts of the rear combination light with a spanner.

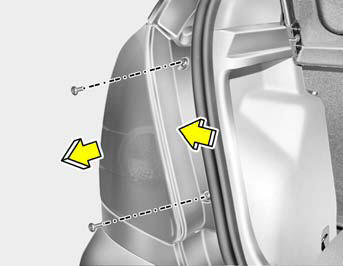

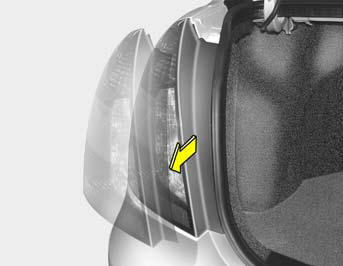

4. Detach the rear combination lamp by pulling it out (4 Door) or remove the


4. Detach the rear combination lamp by pulling it out (4 Door) or remove the mounting screws of the rear combination lamp with a phillips screwdriver (3 Door).

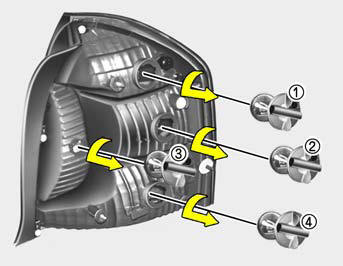

5. To replace the rear combination light, take it out from the bulb holder by


5. To replace the rear combination light, take it out from the bulb holder by turning it counterclockwise.

(1) Tail Light
(2) Turn Signal Light
(3) Back-up Light
(4) Stop/Tail Light
6. Install the new bulb.
