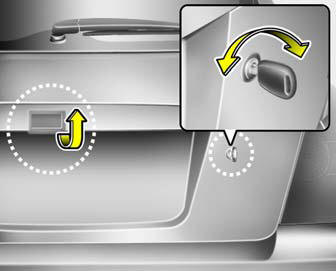

Tail Gate (3 Door)
o To open the tail gate, unlock it by turning the key clockwise, then pull the outside handle toward you.
o To close, lower the tail gate and shut firmly to engage the latch. Lock the tail gate by turning the key counterclockwise.
o If the vehicle is equipped with central door locking, the tail gate can be locked without a key. Push the front portion of the central door locking switch after closing the tail gate.
o If the tail gate is open when the front portion of the central door locking switch is pushed, the tail gate will be locked when it is fully closed.
See also:
How to Use Front Towing Hook
(1)Open the towing hole cover by pushing it with your finger.
(2)Take out the towing hook from the jack case. To mount the towing hook, rotate
it clockwise.
NOTE:
The jack case is located on ...
Folding Rear Seatbacks
The rear seatbacks may be folded to facilitate carrying long items or to increase
the luggage capacity of the vehicle.
WARNING:
The purpose of the fold-down rear seatbacks is to allow you to carry ...
Steering gear box, linkage & boots/lower arm ball joint
With the vehicle stopped and engine off, check for excessive free-play in the
steering wheel. Check the linkage for bends or damage. Check the dust boots and
ball joints for deterioration, cracks, ...
