Engine compartment fuse replacement

Hyundai Sonata / Sonata 2011 Owners Manual / Maintenance / Fuses / Engine compartment fuse replacement

1. Turn the ignition switch and all other switches off.


1. Turn the ignition switch and all other switches off.

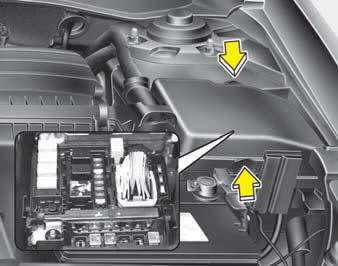

2. Remove the fuse panel cover by pressing the tab and pulling up.

3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.

4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.

CAUTION

After checking the fuse panel in the engine compartment, securely install the fuse panel cover. If not, electrical failures may occur from water contact.

Multi fuse


Multi fuse

If the multi fuse is blown, it must be removed as follows: 1. Turn off the engine.

2. Disconnect the negative battery cable.

3. Remove the fuse panel on the right side in the engine compartment.

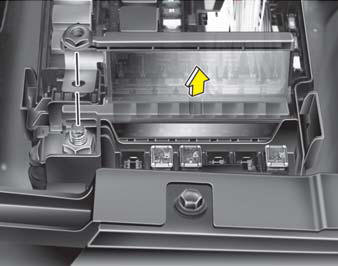

4. Remove the nuts shown in the picture above.

5. Replace the fuse with a new one of the same rating.

6. Reinstall in the reverse order of removal.

NOTICE

If the multi fuse is blown, consult an authorized HYUNDAI dealer.
